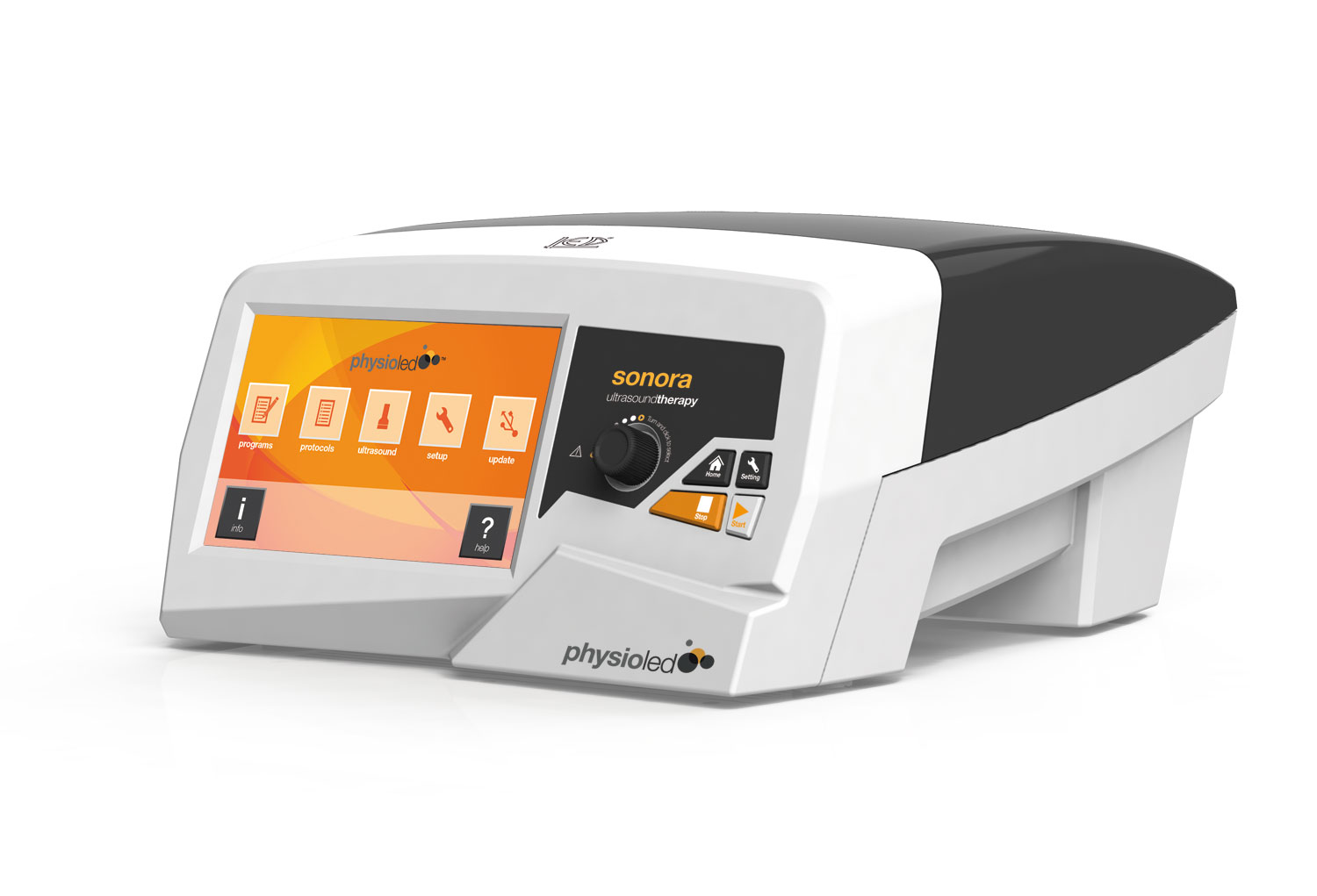

    Sonora - Ultrasound Therapy Device

    Manufacturer: Physioled
    The Sonora is a programmable unit for ultrasonic transducers designed to operate within working frequencies ranging from 1 to 3 MHz.
    SKU: FIT0433
    *
    €1999.20
    i h

    The Sonora is a programmable unit for ultrasonic transducers designed to operate within working frequencies ranging from 1 to 3 MHz.

    The unit is available in two versions: one with automatic tuning, intended for ultrasonic transducers within the 1 MHz - 3 MHz range, and a combined version (Combi) with automatic tuning that enables the use of ultrasonic transducers in the same range alongside electrotherapy currents.

    Through the Sonora, it is possible to deliver continuous or modulated ultrasound, with programmable intensity and application time, tailored for deep thermotherapy treatments aimed at addressing various pathological conditions.

    The Sonora transducer handpieces can be used underwater.

    FEATURES

    • Output frequency: 1.0 - 3.0 MHz
    • Maximum intensity: 3.0 W/cm²
    • Maximum continuous output current: 30 mA*
    • Maximum pulsed output current: 70 mA*
    • Maximum output voltage: 100 Vdc*
    • Power supply: 90-240 Vac / 50-60 Hz
    • Power input: 70 VA / 100 VA (combi)

    (*) Features available only in the combined version.

    NEW FEATURES

    • Wide range of preset protocols
    • Custom programs
    • Multifrequency handpieces
    • Automatic accessory recognition
    • Continuous or pulsed delivery
    • Integration with electrotherapy

    Sonora Cryo is equipment based on the synergy of two therapeutic techniques: cryotherapy and ultrasound therapy, significantly amplifying the healing effects of each method. Cold ultrasound therapy is highly effective for treating inflammatory and painful conditions. The anti-inflammatory action of ultrasound combines with the analgesic, anti-edema, and pain-relieving effects of cryotherapy, producing various types of effects: thermal, mechanical, cavitation, biological, and phonophoresis. It is used as an anti-inflammatory, analgesic, for reducing edema, and combating muscle contractures.

    FEATURES

    • Output frequency: 1.0 - 3.0 MHz
    • Maximum intensity: 3.0 W/cm²
    • Power supply: 90-240 Vac / 50-60 Hz
    • Maximum absorbed power: 70 VA (Sonora)

    NEW FEATURES

    • Wide range of preset protocols
    • Custom programs
    • Multifrequency applicators
    • Automatic accessory recognition
    • Continuous or pulsed emission
    Standard Accessories Sonora Sonora Combi Sonora Cryo
    Power Cable 2 meters 1 pc. 1 pc. 1 pc.
    Ultrasound Handpiece (US): Ø35 mm, with automatic frequency adjustment (1-3 MHz) 1 pc. 1 pc.
    Conductive Rubber Electrode with Synthetic Skin: 80 x 120 cm   4 pcs.
    Conductive Rubber Electrode with Synthetic Cabin Skin: 45 x 60 cm   4 pcs.
    Quick-Fix Bandages  8 x 40 cm   2 pcs.
    Quick-Fix Bandages 8 x 60 cm   2 pcs.
    Quick-Fix Bandages 8 x 100 cm   1 pc.
    Electra Cable Connections: Electra 1 - Electra 2   1 pc.
    Ultrasound + Cryo Handpiece: Ø65 mm, with frequency range of 1-3 MHz     1 pc.
