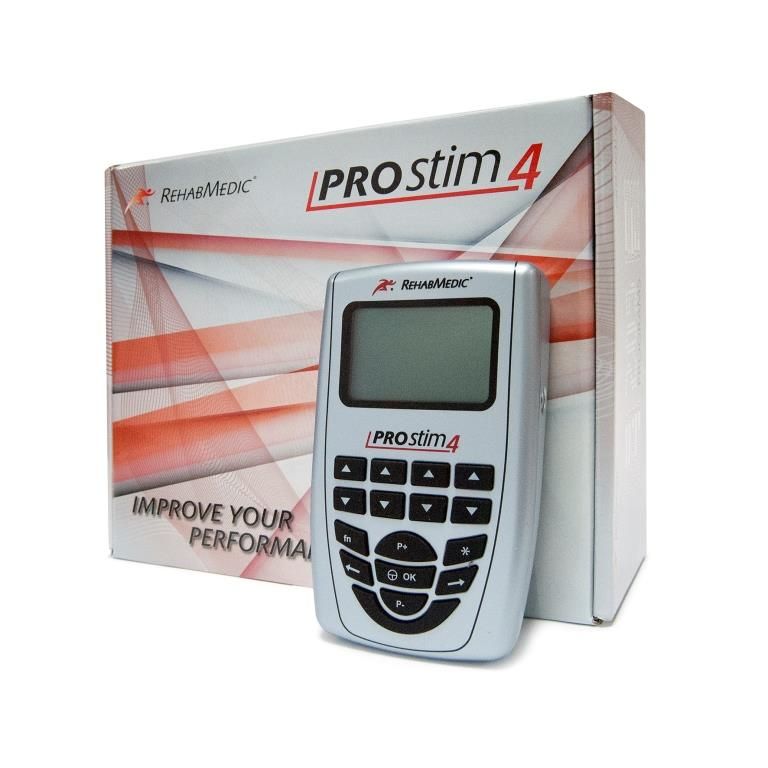

Prostim 4 - Electrostimulation

RehabMedic Prostim 4 is a 4-channel device designed for physiotherapists, sports medicine, and demanding athletes.

• Suitable for medical use, functional rehabilitation, and pain relief therapies.
• Offers a wide range of applications for fitness and beauty treatments.
• Provides 205 programs:
  • Sport (53)
  • Specific sports (30)*
  • Fitness (58)
  • Beauty (16)
  • Pain/TENS (20)
  • Rehabilitation (11)
  • Incontinence (1)
  • Iontophoresis (1)
  • Microcurrents (12)
  • Denervation (3)
  • *Specific programs: Running, Football, Volleyball, Cycling

SPORT PROGRAMS:

• Capillarization
• Warm-up
• Pre-competition warm-up
• Demonstration
• Active recovery
• Maximum strength
• Strength endurance
• Explosive strength
• Aerobic endurance
• Reactivity
• Post-competition recovery
• Muscle relaxation
• Hypertrophy

FITNESS PROGRAMS:

• Firming
• Bio-Pulse for firmness
• Shaping
• Bio-Pulse for shaping
• Toning
• Muscle mass increase
• Body sculpting
• Definition
• Jogging
• Anaerobic fitness
• Aerobic fitness
• Cramp prevention

BEAUTY PROGRAMS:

• Drainage
• Lipolysis
• Toning massage
• Skin tone improvement
• Connective tissue massage
• Postpartum drainage
• Postpartum lipolysis
• Postpartum firming

SPECIAL SPORTS PROGRAMS:

• VOLLEYBALL: Maximum strength, Explosive strength, Reactivity
• FOOTBALL: Special strength 1, 2, 3; Speed endurance 1, 2, 3
• RUNNING: Aerobic preparation, Aerobic competition, Aerobic recovery
• CYCLING: Aerobic work 1, 2, 3

TECHNICAL SPECIFICATIONS:

Device:

• Dimensions: 160 x 99 x 35.4 mm
• Weight: 404 g
• Housing material: ABS
• Protection grade: IP 22
• Storage/transport temperature: -10°C to 45°C
• Maximum relative humidity: 30%-75%

Operating Conditions:

• Temperature: 0°C - 35°C
• Relative humidity: 15%-93%
• Atmospheric pressure: 700 hPa - 1060 hPa

EMS and TENS Characteristics:

• Available channels: 1-2-3-4
• Constant current: Yes
• Intensity: 0-120 mA at 1000 Ohm load
• Waveform: rectangular, biphasic, symmetric, balanced
• Frequency range: 0.3-150 Hz
• Pulse width: 30-1000 μs
• Work time: 1-30 seconds
• Recovery time: 0-1 minute

Microcurrents:

• Available channels: 1-3
• Constant current: Yes
• Minimum frequency: 5 Hz
• Maximum frequency: 200 Hz
• Minimum intensity: 0 μA
• Maximum intensity: 800 μA

Denervated Muscles:

• Available channels: 1-3
• Maximum intensity: 60 mA

Iontophoresis:

• Available channels: 1
• Maximum intensity: 10 mA

Power Supply:

• Brand: GLOBTEK
• Model: GTM4160-2512
• Input: 100-240Vac, 50-60Hz, Max 0.6A
• Output: 12V 2.08A

Battery:

• Battery pack: Ni-MH 7.2 V 1.8 Ah

PACKAGE CONTENTS:

a. PROSTIM 4 unit
b. 4 color-coded cables for electrode connection (EMS, TENS, DENERVATION)
c. 2 gray cables for electrode connection (MICROCURRENT and IONTOPHORESIS)
d. Set of 4 reusable self-adhesive electrodes (50 x 90 mm)
e. Set of 4 reusable self-adhesive electrodes (50 x 50 mm)
f. Power adapter
g. User manual
h. Carrying bag
