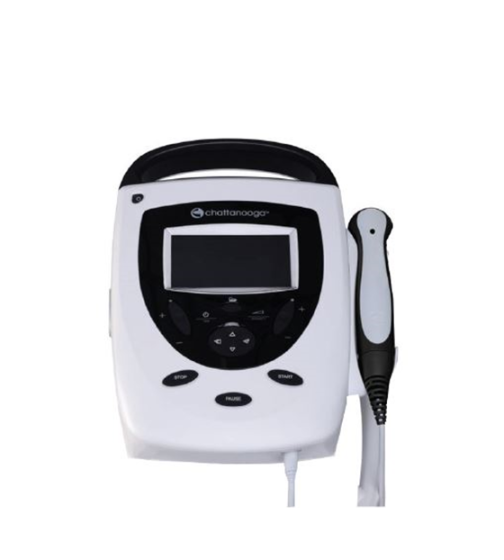

Ultrasound designed to offer you optimal results in your treatment wherever you are with the option of using it with or without the optional cart, this versatile device adapts to your needs. Enjoy ultrasound frequencies of 1 or 3.3 MHz, with the flexibility of pulsed or continuous work cycles as your treatment requires
The Intelect Transport 2 comes equipped with a 5 cm2 ultrasound applicator, and also offers a variety of additional sizes to fit your needs. preferences and specific treatment areas.
INDICATIONS OF ULTRASOUNDS:
Musculoskeletal conditions; facilitate pain relief in the affected area.
Features:
Effective Pain Relief: Provides symptomatic relief for both acute and chronic pain associated with various musculoskeletal conditions, as well as postoperative pain.1
Precise Detection and Monitoring: Improves treatment efficiency by ensuring the patient receives the ultrasound energy intended for optimal recovery.
Frequency Flexibility and Applicators: Offers the versatility of dual-frequency ultrasound (1 MHz or 3.3 MHz) with 2cm2, 5cm2 and 10cm2 applicator options to adapt to various therapeutic needs.
Extended Battery Life: Eliminates the hassle of extra cables and provides the freedom of all-day use in portable applications.
Intuitive Color Interface: A high-resolution screen with clear, simple menus offers real-time information on treatment progress.
Personalized Memory: Allows you to save up to 15 personalized protocols for efficient and convenient management of treatments.
Improved Response and Detection: A faster refresh rate and a more responsive keyboard ensure an optimal user experience for both therapists and patients, while ultrasound coupling detection ensures precise and effective application of the treatment.
Quick Setup and Personalization: Facilitates the rapid preparation and adaptation of treatments according to the patient's specific needs.
Enhanced Portability: Ergonomic handle design and an optional long-lasting battery for easy treatment anywhere in the center.
Simplicity of Use: Device setup is further simplified with an optional cart that offers spacious accessory storage drawers conveniently located near the device, with a magnetic attachment that ensures a secure hold without the need for tools additional.
Technical specifications:
- 1 Mhz and 3.3 Mhz multi-frequency head
- Variable duty cycle outputs of 16 Hz, 48 Hz, or 100 Hz
- Continuous or pulsatile therapy (10%, 20%, 50% and 100%)
- 15 memory spaces
- Ergonomically designed heads for underwater use
- Acoustic and visual head contact control
- Pulse duration: 1 - 5 ms - Max. (ON): 5 ms - Min. (OFF): 5 ms
| Frequency of the ultrasound applicator |
2cm² 1MHZ
|
2cm² 3.3MHZ |
5cm² 1MHZ |
5cm² 3.3MHZ |
10cm² 1MHZ |
10cm² 3.3MHZ |
| Arie de radiație efectivă (ERA) INTL (CM²) |
1.5 |
1.5 |
3.0 |
3.0 |
5.8 |
5.8 |
| Power maximum output in continuous mode |
3W |
3W |
6W |
6W |
12.7W |
3W/cm² |
| Power maximum output in pulsed mode |
4.5W |
4.5W |
9W |
9W |
17.4W |
13.9W |
| Intensity maximum in continuous mode |
2W/cm² |
2W/cm² |
2W/cm² |
2W/cm² |
2.2W/cm² |
1.2W/cm² |
| Intensity maximum in pulsed mode |
3W/cm² |
3W/cm² |
3W/cm² |
3W/cm² |
3W/cm² |
3W/cm² |
General technical specifications
Network electric: 100-240 VAC, 50/60 Hz, 1.0 A
Weight: 1.9 kg
Weight shipping: 3.9kg
Dimensions: 13.6" long x 9.8" wide wide x 4.7" high (34.6cm x 25cm x 12cm)
Class electrical safety: Class 1, Type B
Tests security: IEC 60601-1, ISO 10993-1, IEC 60601-2-5, IEC 60601-1-2, IEC 60601-2-10, IEC 60601-1-6, IEC 62366-1, IEC 62304, IEC 62133, ISO 14971
Includes:
- 5 cm2 head
- Ultrasonic gel
- User manual on CD
- Power cable
Optional accessories:
- Ultrasound head of 1, 2 or 10 cm2
- Optimized transport cart.
- Optimized carrying bag
