CrioSix - Cryoultrasound

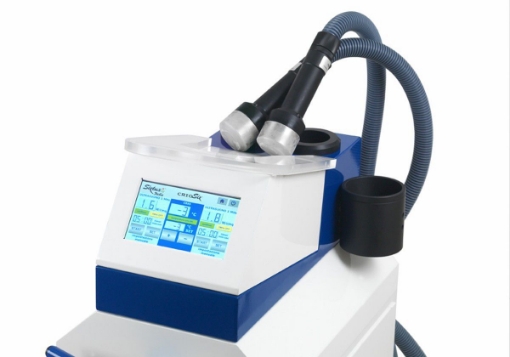

Criosix is a device that combines the effects of cryotherapy with those of ultrasound therapy. With Criosix, it is possible to work both manually and with preset protocols.

Specifications:

2 treatment heads, which can be cooled to a temperature of -8 degrees Simultaneously with cold therapy, the two treatment heads are capable of delivering an ultrasound wave at 1 MHz and 3 MHz Equipped with casters 7-inch touchscreen interface panel that allows monitoring and display of parameters using the provided stylus

Technical features:

Power supply: 230V, 50Hz

Emission mode: Continuous-Pulsed-Intermittent

Modulation waveform in pulse mode: square wave

Maximum effective intensity at 1 MHz: 3 Watt x cm2

Effective radiation area (ERA) at 1 MHz: 7 cm2

Maximum effective intensity at 3 MHz: 2.5 Watt x cm2

Effective radiation area (ERA) at 3 MHz: 4.9 cm2

Cryotherapy down to -8°C

Beam non-uniformity ratio (BNR) for each head: 4.4

Dimensions 64 x 59 x h 150 cm

Weight approximately 75 kg

Class II medical device

CE 1936
